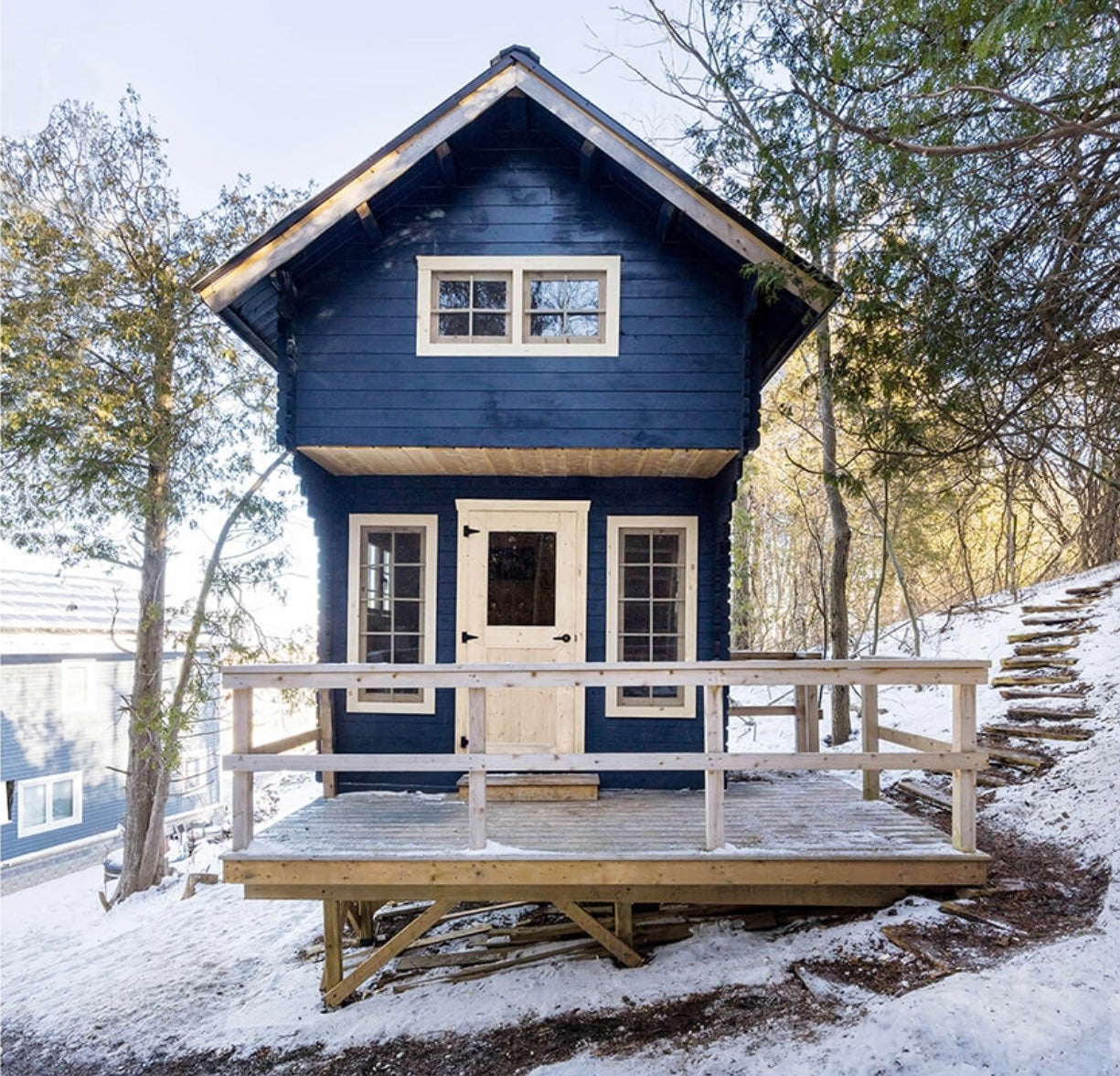

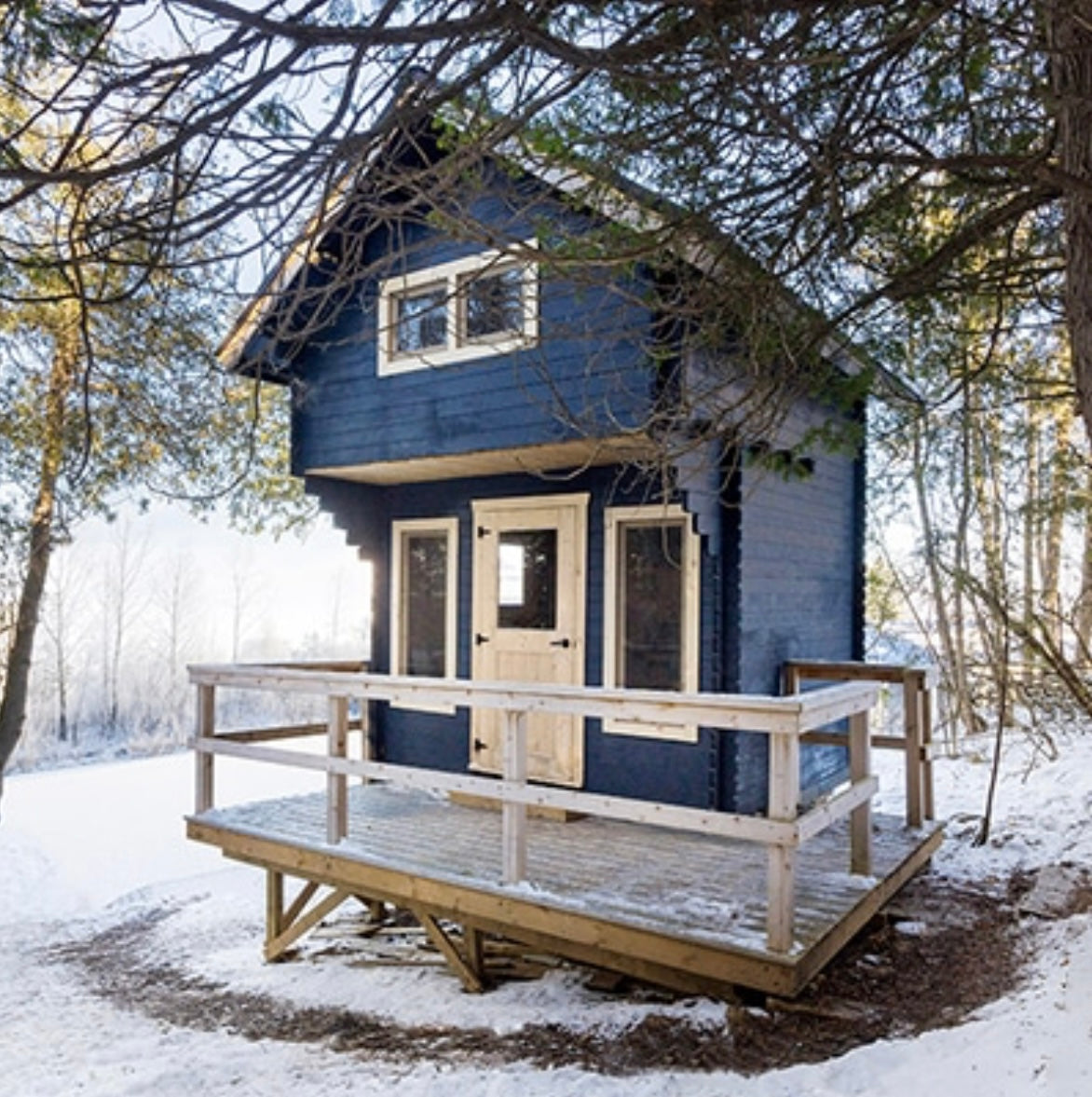

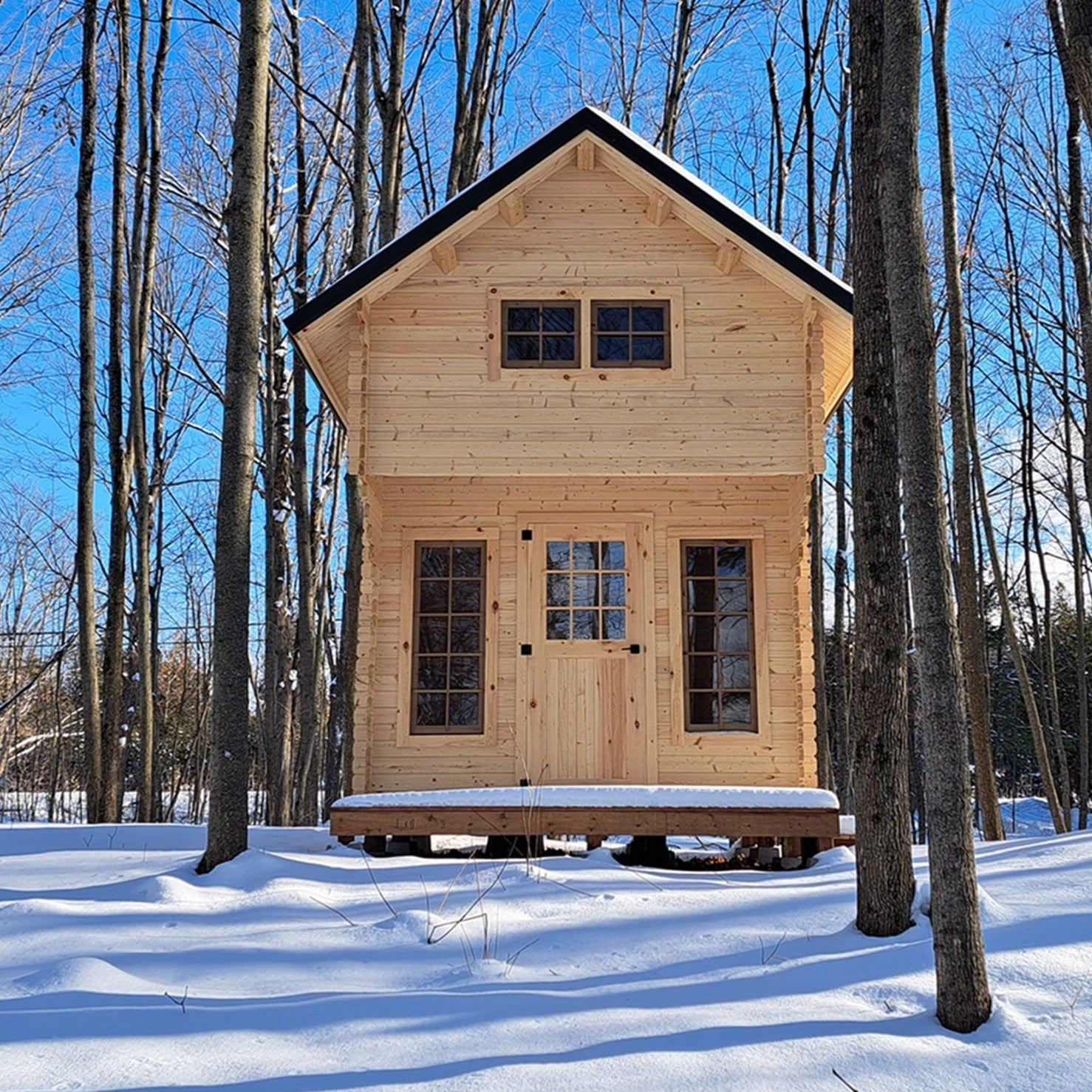

Haven™ Bunkie with Loft

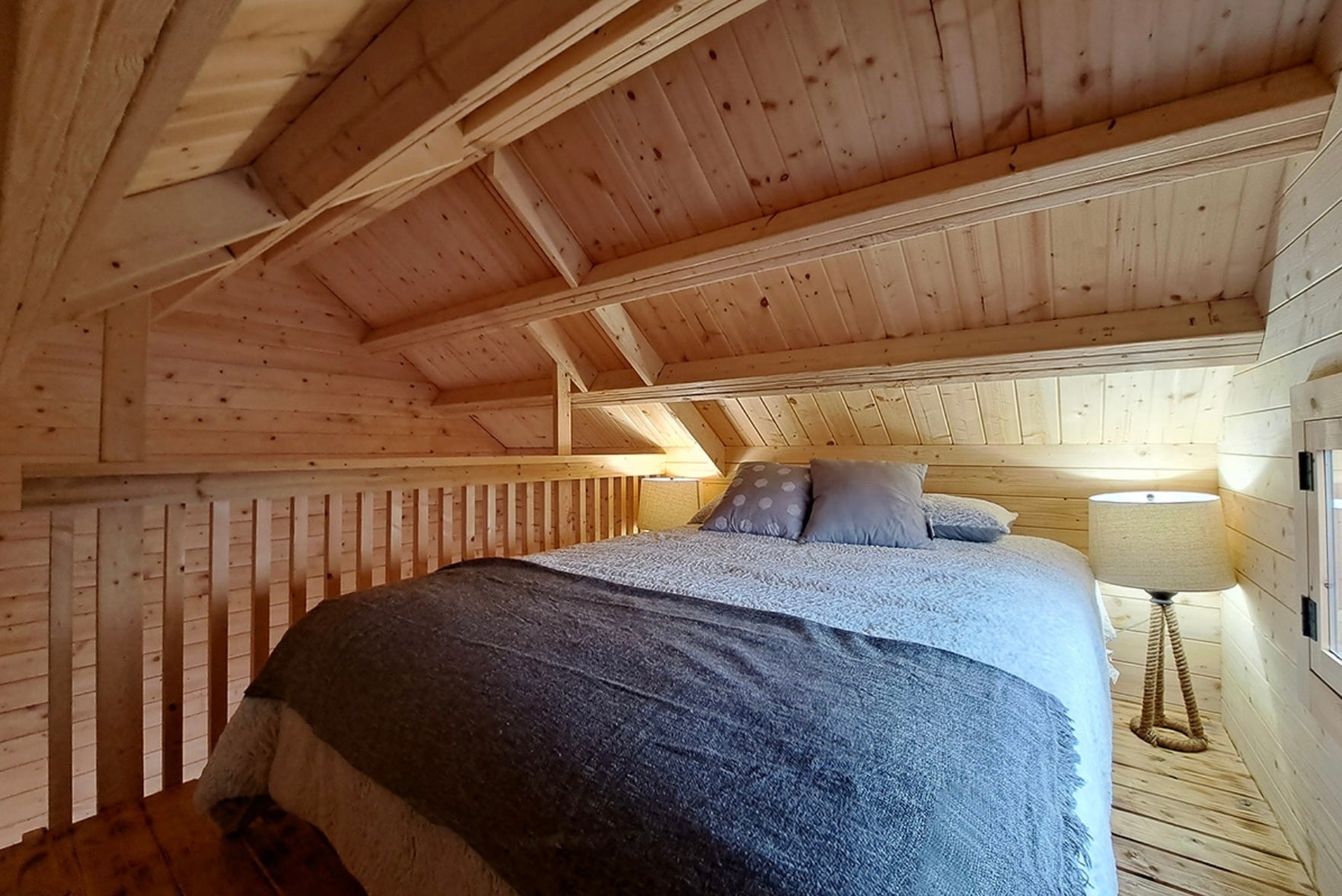

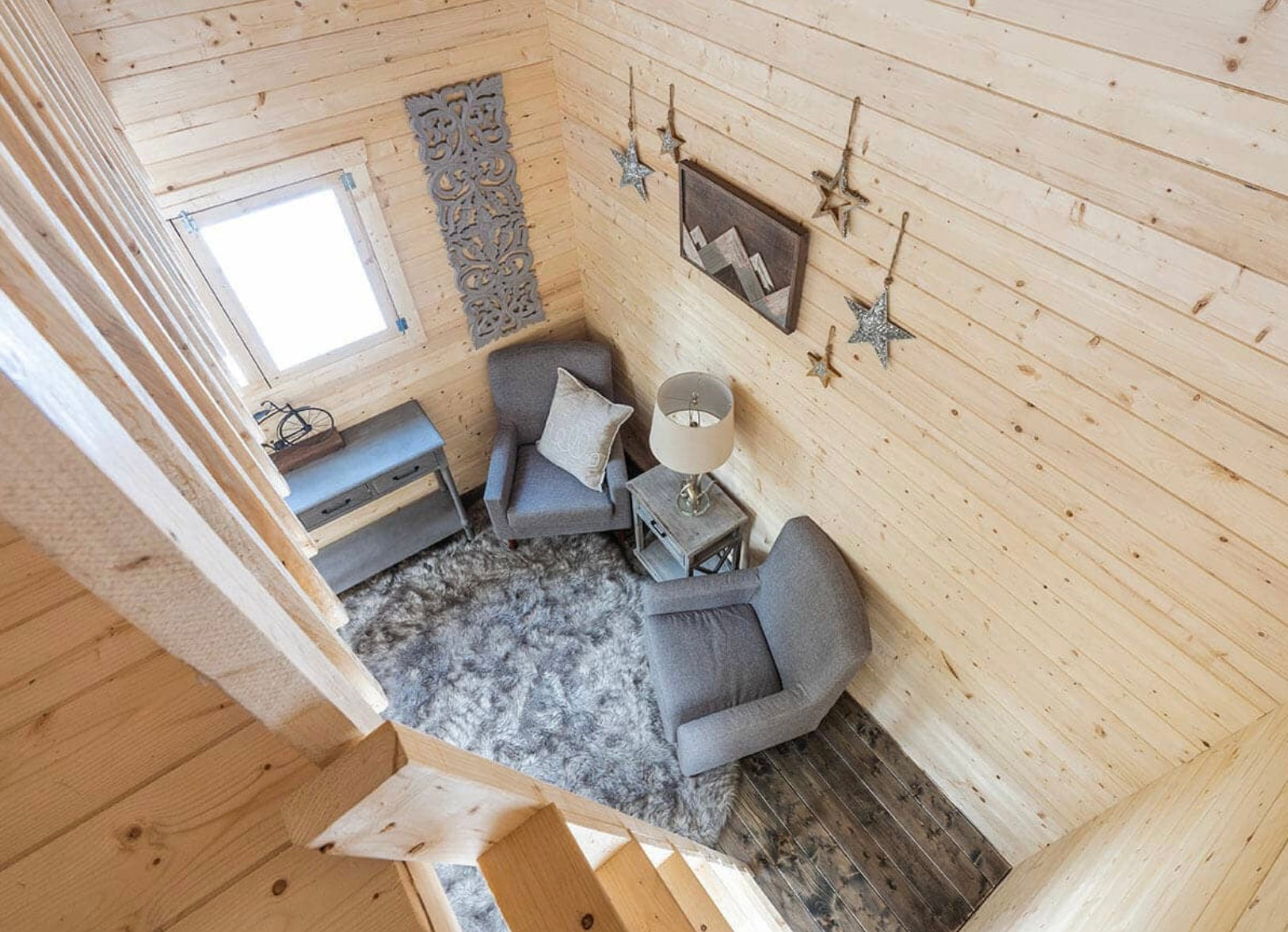

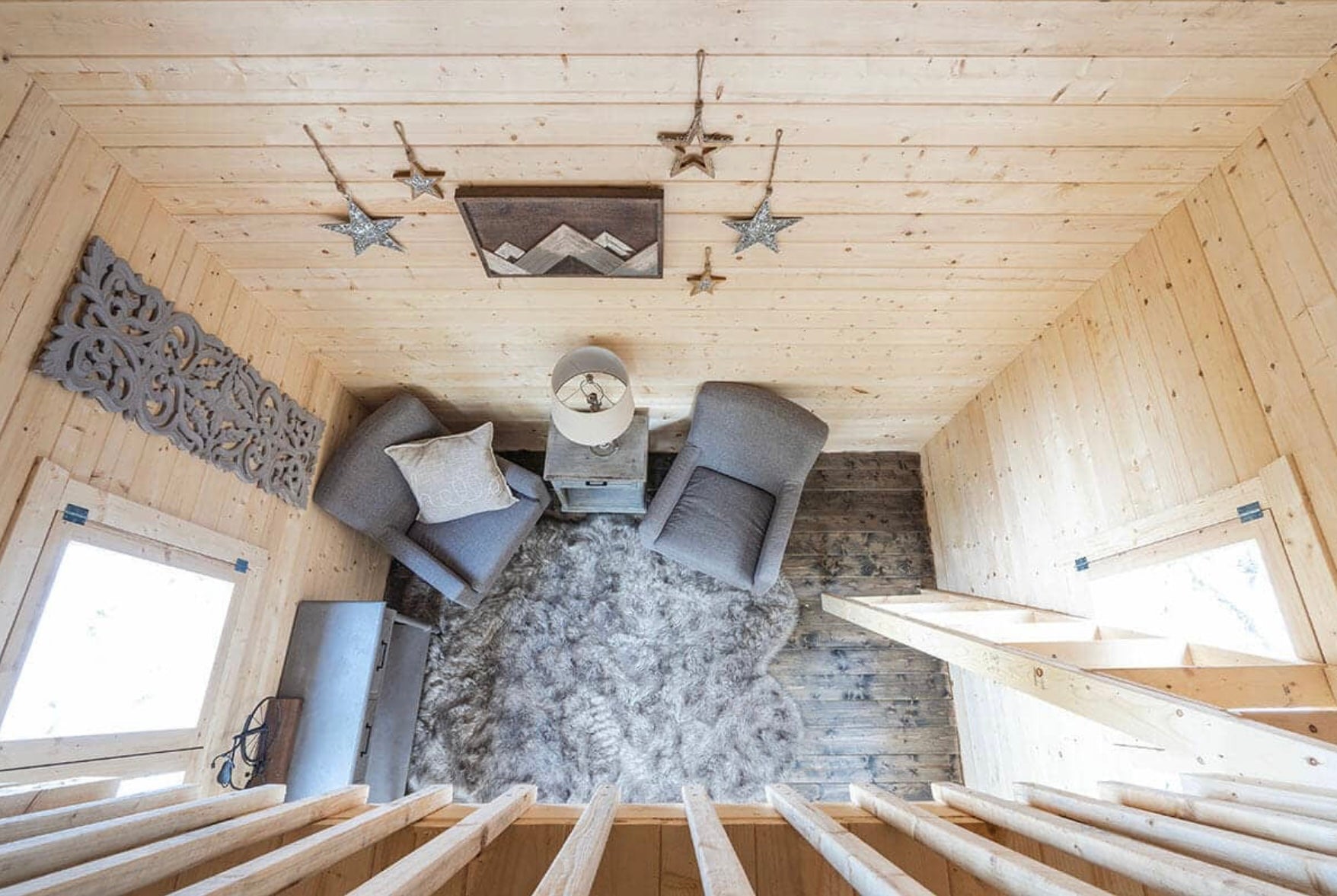

Do you need extra space at your home or cottage? This bunkie has the tallest loft. Its base is approx 10′ x 10′ (104.6 sq. ft.). The bunkie loft is 8′ x 10′ (80 sq. ft.) and tall enough that you can stand up in it (82″).

Haven Bunkie with Loft includes:

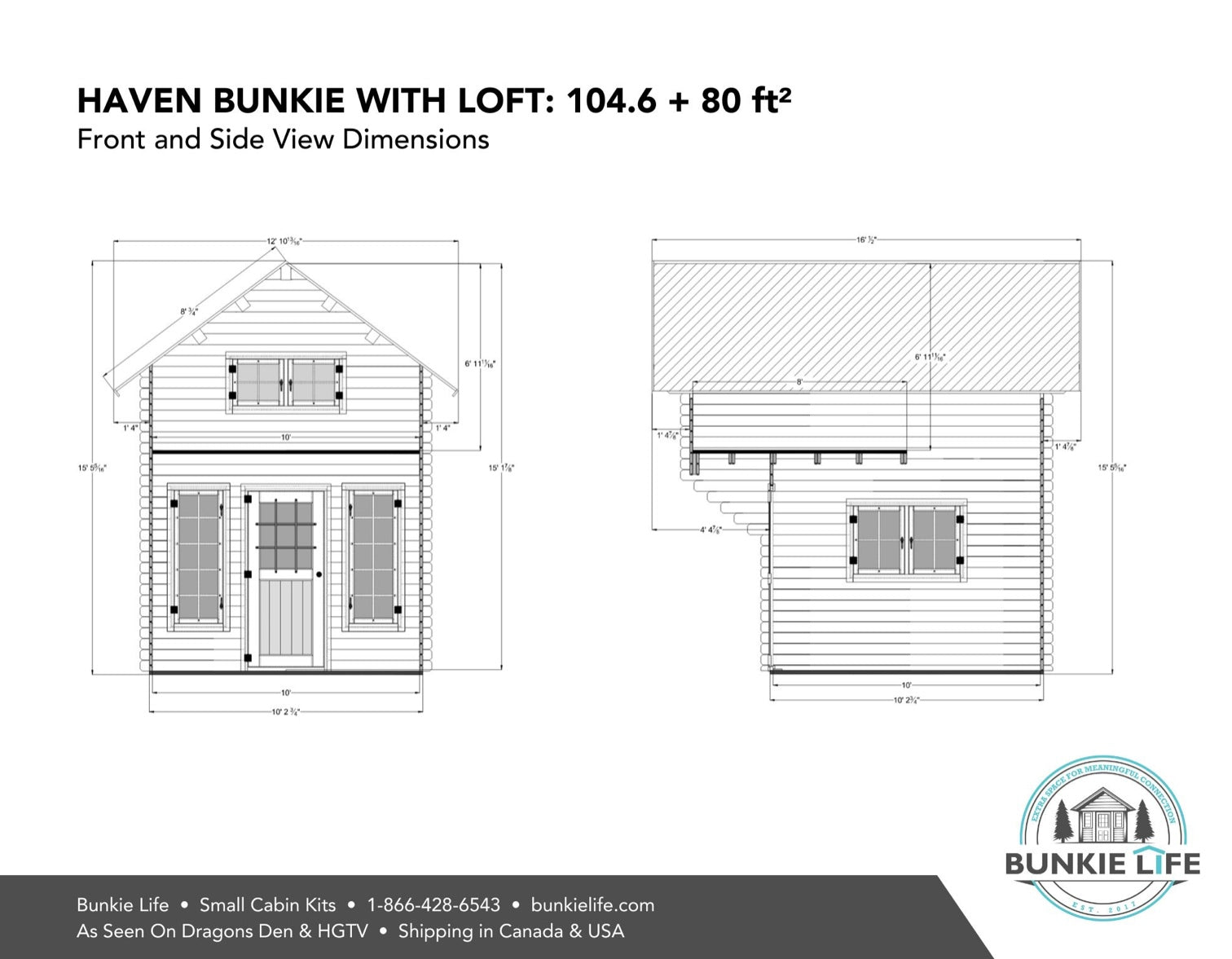

• Footprint: 10′ 2¾”  x 10′ 2¾”
• Square Footage: 104.6 ft² + Loft 80 ft²
• Height of Bunkie: 183.5″, Height of Loft (floor to peak): 82”
• Made from premium grade kiln-dried Northern Spruce
• All wood is pre-cut, notched and interlocking

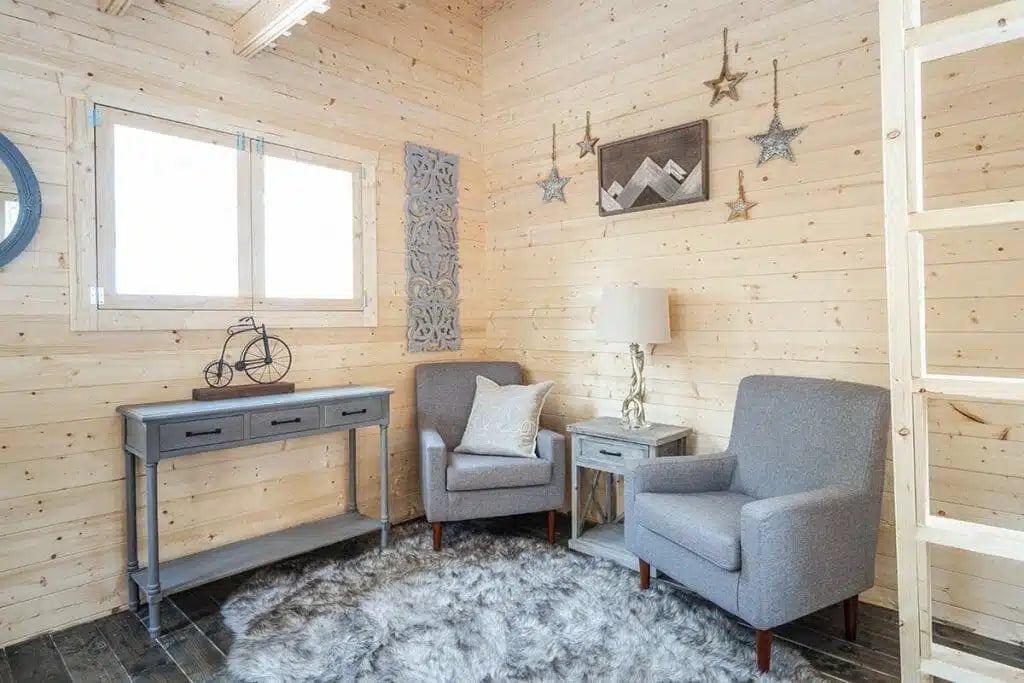

• Main area plus loft with wood ladder; loft rated for up to 2500 lbs

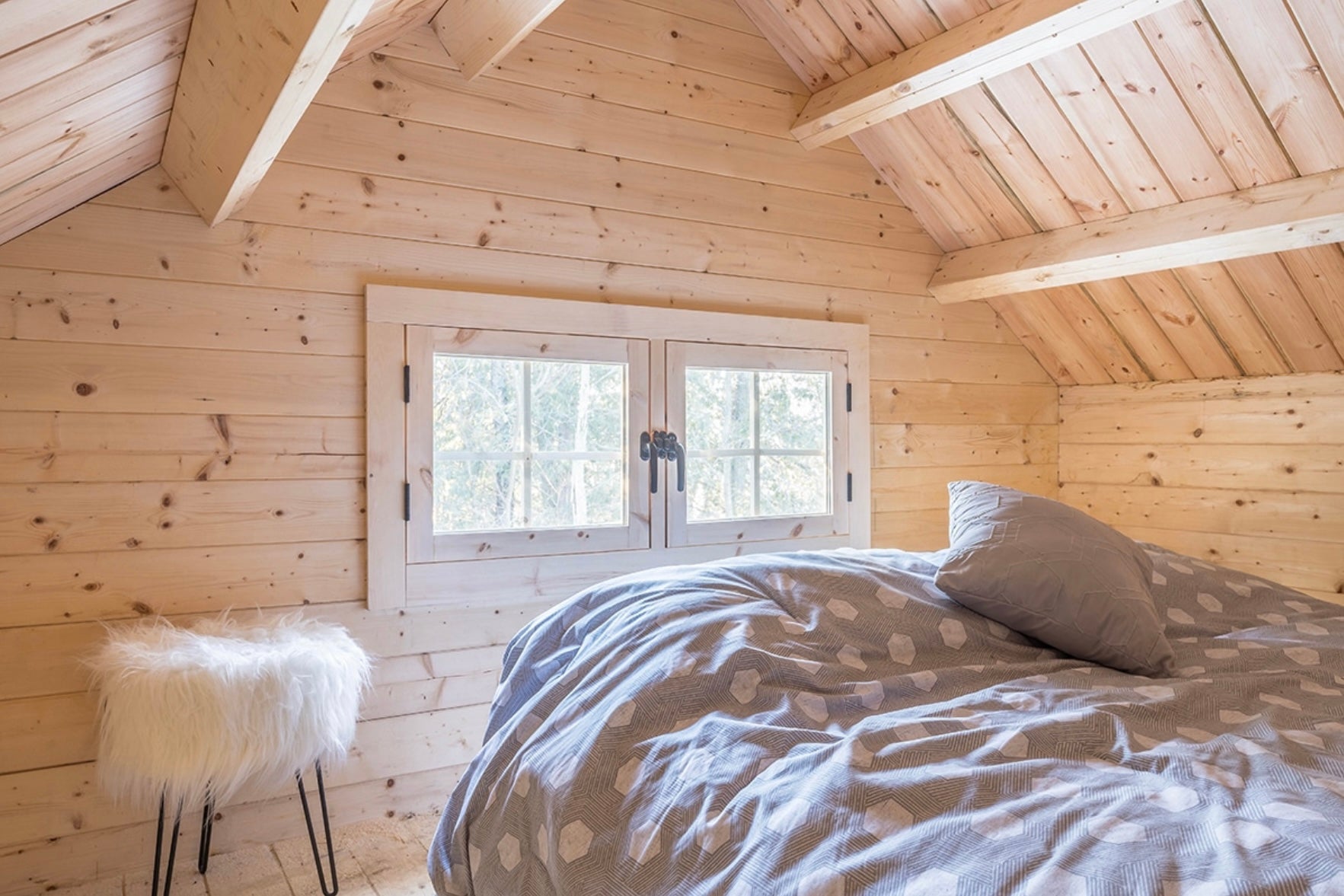

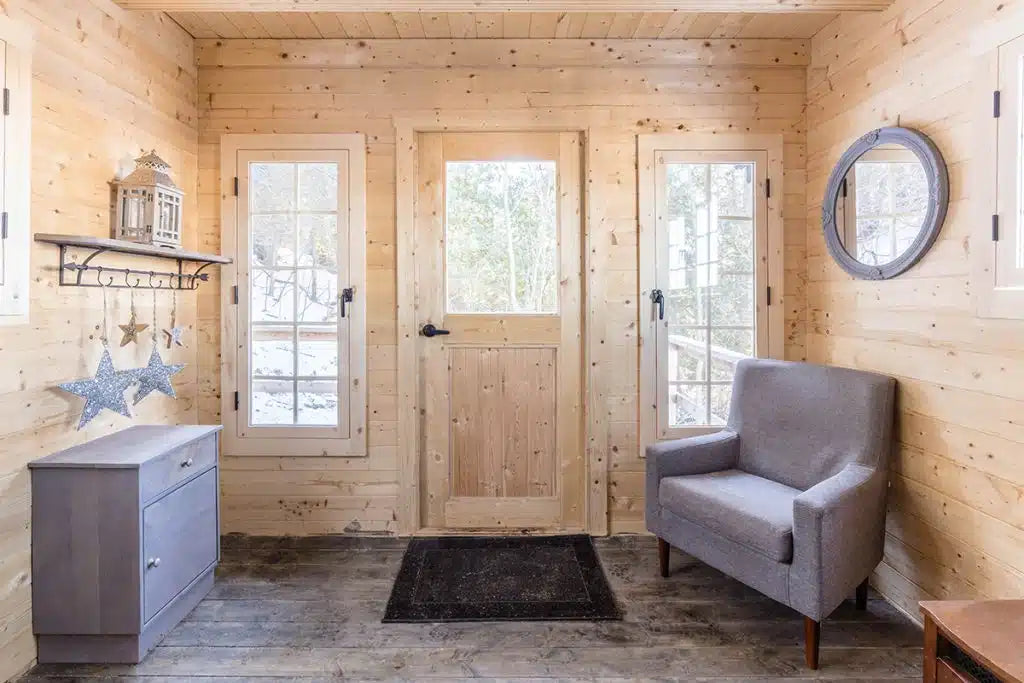

• 5 Double Pane Windows for energy efficiency: 2 Long Windows on either side of the door (25″ x 66.5”) + 1 Side Double Window (51″ x 35”) + 1 Loft Double Window (51” x 23.1”) + 1 Window in Door
• Number of operating windows: 4 (include screens)
• Extra windows can be added to the side wall or back wall (purchase separately)
• Door: 34” x 80”, Window in Door: 24″ x 30″
• Pressure-treated floor sleepers
• Tongue and groove wooden floor boards and roof deck boards

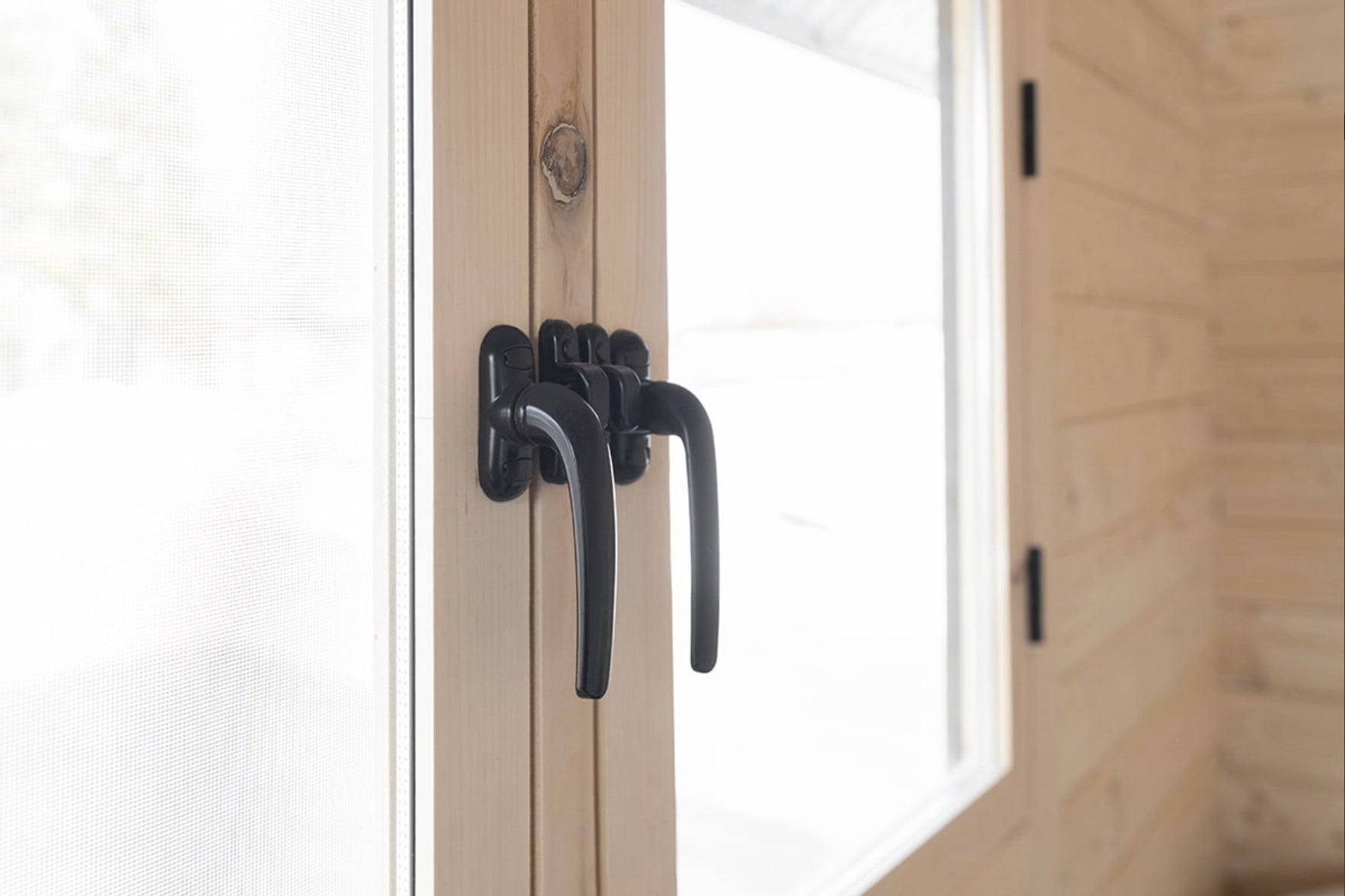

• Premium window and door hardware, including keyed door knob
• Kit includes screws and nails
• Snow load rated for the northernmost parts of Ontario
• Engineer stamped drawing is available if permit application is required (nominal fee)
• Manufactured at our factory in Rockwood, ON

We recommend checking with your municipality on the local bylaws and setback requirements before starting your project.
